Rust, Oxide and Scale Removal

Rust, mill scale, weld oxide, heat tint and flash rust differ in composition, adhesion and effect on the substrate. A method that quickly removes loose rust may leave adherent scale, soluble contamination or an unsuitable profile. A chemical that dissolves oxide may attack the base metal, trapped joints, coatings or dissimilar materials. Selection therefore begins with the actual layer and downstream requirement, not with the most aggressive available tool or chemical. [S202; S205; S212]

Chapter objectives

After this chapter, the reader should be able to:

• distinguish common rust, oxide and scale conditions;
• define the required end condition before selecting a method;
• compare hand-tool, power-tool, blast, water-jet and chemical removal routes;
• recognise when surface appearance, dust, salts and profile need separate checks;
• avoid cross-contamination and unnecessary base-metal removal;
• manage rinsing, drying, flash rust and temporary protection;
• recognise dust, noise, impact, toxic-coating and corrosive-chemical hazards;
• route blasting residue, spent chemical, sludge and rinsate appropriately; and
• troubleshoot incomplete removal, rapid re-rusting, staining, smearing and coating-readiness defects.

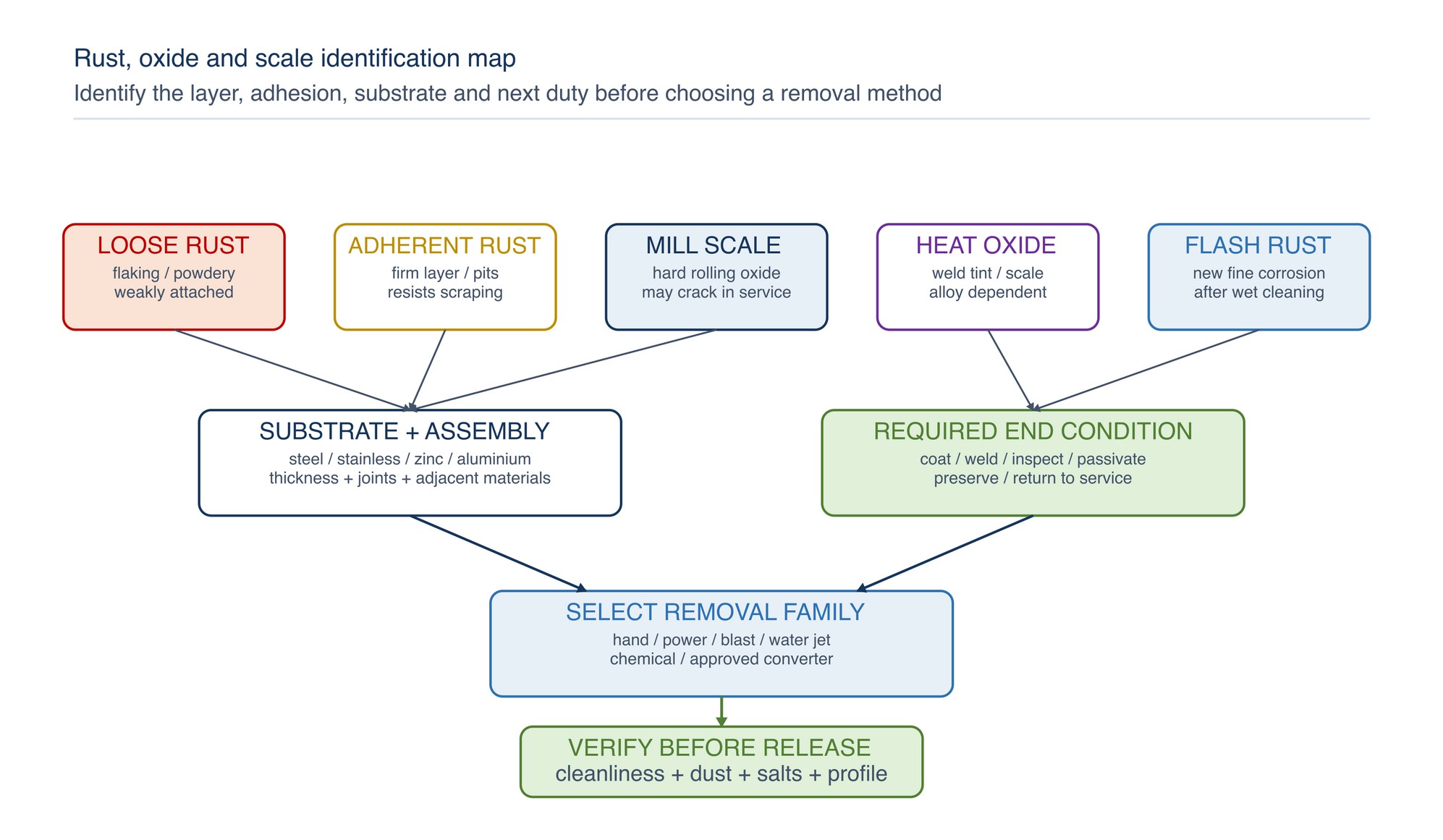

Do not treat every brown, black, blue or grey surface as the same “rust.” Identify what is present, how strongly it adheres and what may lie beneath it.

The first inspection should include the visible condition, process history, previous coating, possible chemical exposure and any evidence of section loss. Thick corrosion can conceal pits, laminations, cracks, perforation or sharp remaining edges.

Removal does not restore lost metal; structural or pressure-containing items require the appropriate engineering assessment.

State what the surface must be ready for: painting, thermal spraying, welding, inspection, assembly, passivation, preservation or return to service. These outcomes can require different levels of oxide removal, roughness and chemical cleanliness.

For coating work, the governing specification can separately define:

• the visual preparation grade;
• permitted remaining coating or staining;
• dust condition;
• soluble-contaminant limit and test method;
• surface-profile range and measurement method;
• treatment of welds, edges and imperfections;
• environmental condition and flash-rust limit; and
• maximum time before coating.

ISO 8501-1 provides visual rust and preparation grades for steel, while ISO 8501-3 addresses welds, edges and visible imperfections. ISO 8501-4 covers visual conditions and flash-rust grades associated with water jetting. These visual references do not by themselves establish soluble-salt content or surface profile. [S202-S204]

Where the exact preparation grade, profile, salt limit, flash-rust grade or time-to-coat is product or specification dependent, Refer to the product label, Technical Data Sheet, or MKTECH representative.

Oil and grease can shield oxide from chemical action, contaminate abrasive media and smear across mechanically cleaned steel. Remove them using the suitable cleaning process before oxide removal where they would interfere with the selected method. Chapter 037 explains industrial cleaning and degreasing in detail.

Also identify old coatings and deposits that may contain hazardous metals or other toxic constituents. Surface preparation can convert an intact material into airborne dust, spent abrasive, sludge or contaminated wash water. The hazard assessment must consider both the removal medium and the material being removed. [S198; S215]

Use clean, dedicated tools where material transfer matters. Carbon-steel brushes, grinding debris or contaminated blasting media can deposit iron on stainless steel. Abrasive previously used on another surface can also transfer coating residue, salts or metals.

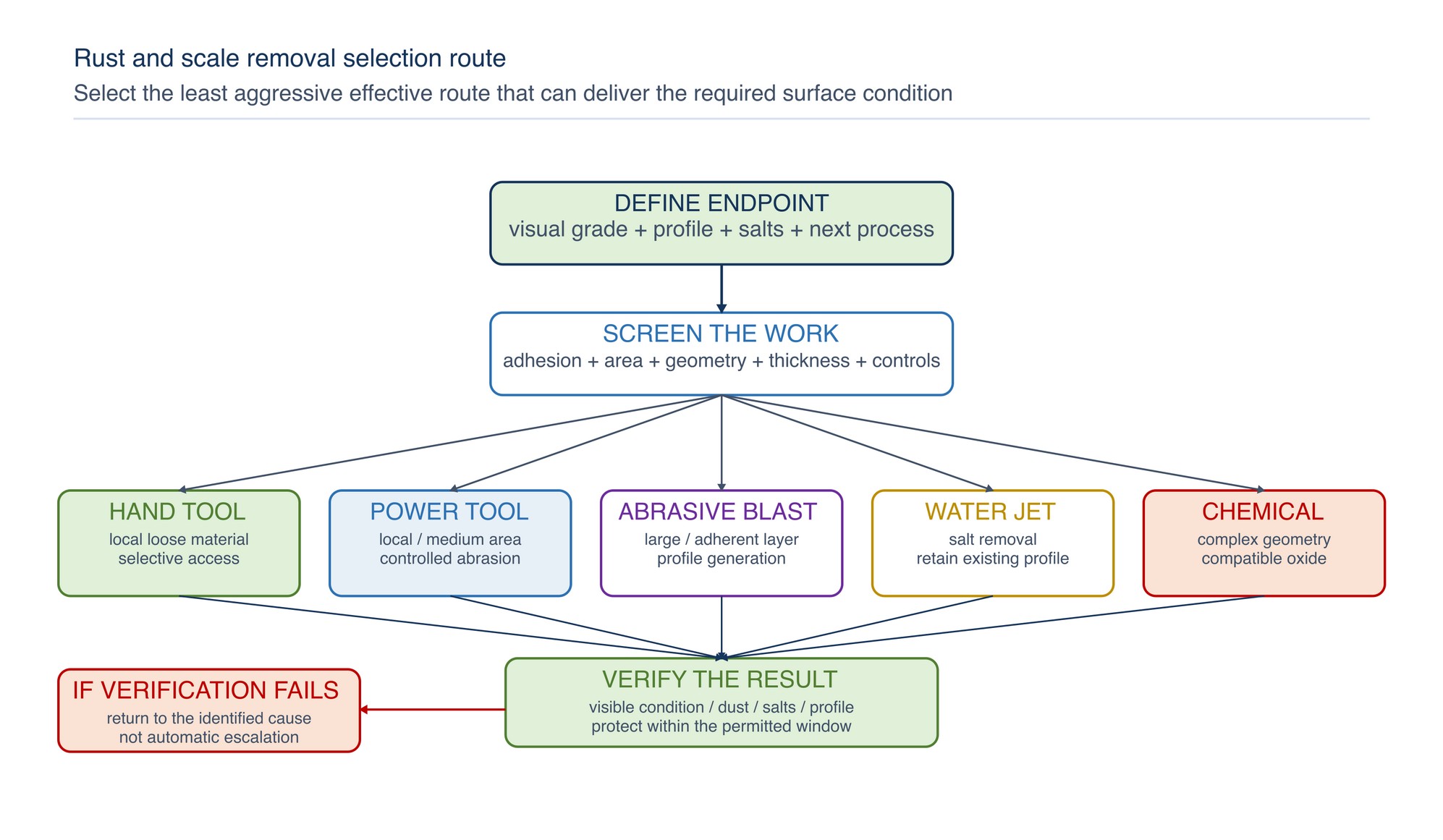

Choose the least aggressive effective route that can reach the surface and deliver the required condition.

Scrapers, chipping tools, hand wire brushes and abrasive sheets can remove loose rust, scale and coating from small or irregular areas. ISO 8504-3 describes hand- and power-tool cleaning as recognised preparation methods for new and maintenance-coated steelwork. [S207]

Use hand tools when access, selectivity or local control is more important than production rate. Work from sound boundaries into the affected area and pay particular attention to edges, pits, weld toes, fasteners and corners. Keep scraping edges in usable condition and choose brush material compatible with the substrate.

Hand-tool cleaning has a defined limit: it can leave tightly adherent rust, scale and coating. Repeated wire brushing may burnish the surface, spread contamination or produce a polished appearance without achieving the required cleanliness or profile. If the selected endpoint cannot be reached, change the method rather than increasing effort indefinitely.

Power wire brushes, abrasive discs, non-woven stripping products, flap products, needle scalers and specialised impact or rotary tools provide different contact actions. Select the product form for the layer, geometry and required finish rather than treating all power-tool cleaning as equivalent.

Control the process by:

• securing the work and controlling the line of fire;
• selecting the correct accessory, attachment and guard;
• keeping the tool within all marked limits;
• using controlled passes instead of prolonged local dwell;
• preventing edge rounding, gouging, thinning and heat tint;
• removing dust and checking the surface under good lighting; and
• replacing damaged, loaded or ineffective consumables.

A shiny surface can be a warning sign when brushing or fine abrasion has polished rust or scale rather than removed it. Deep pits may remain contaminated even when the surrounding peaks are bright. Inspect both the overall appearance and the lowest accessible features.

Refer to the product label, Technical Data Sheet, or MKTECH representative.

Abrasive blasting combines media, velocity, angle, distance, dwell, equipment condition and operator technique. It can remove strongly adherent oxide and create a surface profile suitable for many coating systems. ISO 8504-2 describes blast-cleaning methods and their fields of application. [S206]

Before blasting, confirm:

1. the substrate is thick and stable enough for the process;
2. oil, grease and incompatible contamination have been removed;
3. the old coating and corrosion residue have been assessed for hazardous constituents;
4. the abrasive type, cleanliness and size distribution suit the required surface;
5. air supply, hoses, nozzle, recovery, ventilation and containment are in suitable condition;
6. adjacent equipment, threads, bearings, seals and openings are protected; and
7. the coating specification defines the required cleanliness and profile.

Do not use abrasive appearance as the only acceptance check. Worn or contaminated media can change the profile and leave embedded residue. Excessive blasting can distort thin sheet, round edges, enlarge pits or remove sound metal.

Incomplete coverage often remains around welds, corners, stiffeners and shadowed geometry.

Blasting creates dust from both the abrasive and the surface material. Enclosure, local extraction, exclusion zones, respiratory protection, hearing protection, protective clothing and cleanup methods must follow the assessed hazards. Dry sweeping and compressed-air dispersal can re-suspend fine contamination and should not replace controlled collection. [S198; S215]

Water jetting can remove loose rust, coating and water-soluble contamination without introducing dry abrasive. It is especially useful where salt removal and dust reduction are important. The existing steel profile normally remains rather than a new abrasive profile being created, so the exposed condition must suit the coating system. [S204]

Control water quality, pressure-rated equipment, nozzle condition, hose restraint, drainage, collection and the exclusion zone. Water jets can penetrate skin and cause severe injury; leaks and damaged hoses require immediate isolation under the equipment procedure.

After cleaning, inspect for retained coating, oxide, salts and flash rust. Drying begins with geometry: drain pockets, tubes, laps and blind holes before treating the visible face as dry. ISO 8501-4 distinguishes visual preparation and flash-rust grades, while ISO 8502 methods address invisible contamination separately. [S204; S209; S210]

Chemical oxide removal uses a formulation that reacts with or dissolves the unwanted layer. The correct chemistry depends on the oxide, alloy, temperature, geometry and downstream requirement. Degreasing normally precedes chemical descaling because oil can prevent uniform contact. [S212]

Do not formulate or mix an improvised pickling solution. Use the supplied product in the specified equipment with the required ventilation, handling, first-aid and emergency controls. Acids can attack the base metal, release hazardous fumes, react with incompatible products and remain trapped in joints or cavities. Contact with some metals can generate hydrogen, with implications for fire, pressure and material integrity.

Stainless-steel pickling removes scale and a thin affected surface layer; passivation is a distinct treatment applied to a chemically clean surface. They are not interchangeable terms. Chapter 039 covers stainless-steel cleaning and passivation in depth. [S212; S213; S217]

Where exact chemistry, dilution, temperature, contact time, neutralisation sequence or compatibility is required, Refer to the product label, Technical Data Sheet, or MKTECH representative.

A rust converter is used only where the selected coating system permits a defined residual rust condition. It does not make loose scale, grease, salt, dust or weak coating acceptable. Remove non-adherent material, clean the surface and achieve the preparation condition required by the converter and coating manufacturer.

Check compatibility across the complete system:

• base metal and remaining rust;
• previous coating and repair boundary;
• converter chemistry and film thickness;
• primer or topcoat family;
• cure condition and recoat window;
• service temperature and exposure; and
• inspection and acceptance method.

Do not use a converter to conceal uncertain corrosion depth, active contamination or an inaccessible structural defect. A dark colour change is not by itself proof of complete reaction, adhesion or coating readiness.

The removal method must be compatible with the full assembly, not only the principal metal.

Heat-sensitive, hardened, high-strength or fatigue-critical components may have restrictions on aggressive grinding, blasting, acid treatment or hydrogen-producing processes. The drawing, repair specification or responsible engineer controls the permitted route.

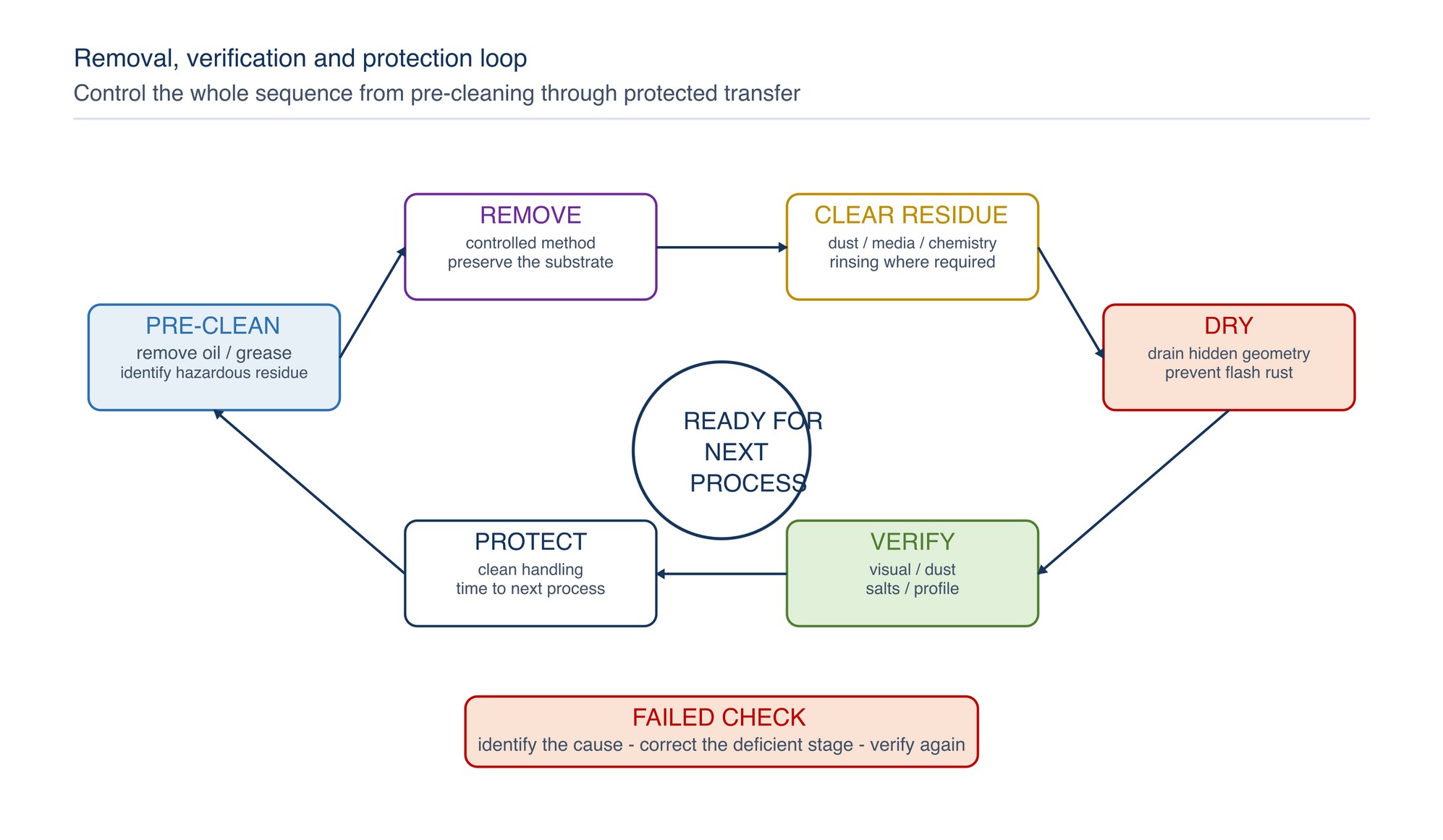

Rinsing removes reacted oxide, dissolved metal, cleaner and process chemistry. Inadequate rinsing can leave corrosive residue or interfere with coating, welding, bonding and passivation. Use a sequence that reaches the same crevices and internal surfaces as the chemical treatment.

Neutralisation is product and process specific. It should not be improvised by adding an opposite chemical to the workpiece, bath or spill. Uncontrolled neutralisation can generate heat, gas and splashing, and can precipitate material that remains on the surface. Follow the defined treatment sequence and verify the rinse result.

Drain and dry the entire geometry promptly. Use clean handling and protected transfer after preparation; bare steel can re-rust rapidly and stainless steel can be recontaminated by dirty tools, racks or contact surfaces.

Flash rust is new corrosion that forms after wet preparation as water evaporates or the surface remains exposed. Its development depends on steel condition, soluble contamination, water quality, humidity, temperature, air movement and elapsed time. [S204]

Reduce the risk by:

• removing soluble contamination as required;
• using suitable process and rinse water;
• draining pockets and hidden geometry;
• drying with clean controlled air or another compatible method;
• preventing condensation and dirty handling;
• monitoring the environment required by the coating system; and
• applying the next treatment within its defined window.

Do not automatically coat over flash rust or repeat aggressive preparation without diagnosis. Determine whether the observed grade is acceptable to the coating system and whether salts, retained moisture or environmental conditions caused the recurrence.

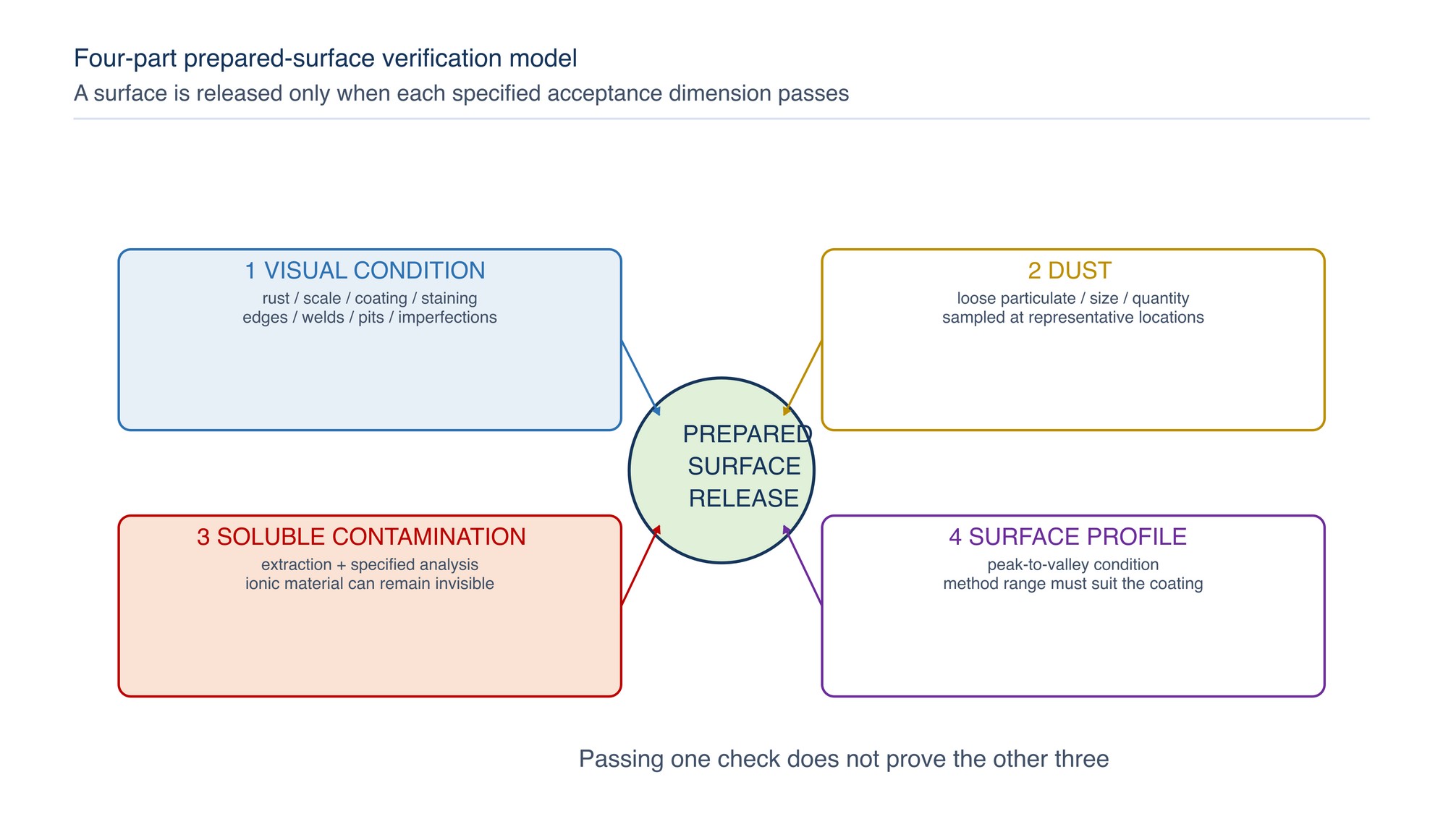

A reliable release decision separates visual cleanliness, dust, soluble contamination and profile. Passing one does not prove the others.

ISO 8502-3 addresses qualitative dust assessment. ISO 8502-6 describes extraction of water-soluble contamination, including limitations where material is hidden under films or in crevices. ISO 8502-9 uses conductometry to assess ionic contamination but does not identify the individual salt species. [S208-S210]

Record the method, location, condition and result needed by the job specification. Refer to the product label, Technical Data Sheet, or MKTECH representative.

Surface preparation can combine high-energy equipment with dust, sharp debris, noise, vibration, corrosive chemicals, pressurised water and hazardous old coatings. Establish the controls before work starts.

Key safety checks include:

• isolate and secure equipment and workpieces;
• identify hazardous coating, scale and process residues;
• use enclosure, extraction, wet control or containment appropriate to the method;
• control flying particles, rebound and the line of fire;
• protect hearing, eyes, face, skin, body and respiratory system as required by the assessment;
• keep incompatible chemicals segregated and in labelled compatible containers;
• provide the specified spill, eyewash, shower and first-aid arrangements;
• treat confined-space work as a separate controlled activity; and
• stop for damaged hoses, guards, ventilation, respiratory equipment or containment.

Pickling products can contain highly corrosive acids, including formulations that require urgent specialist first aid after contact. HSE guidance emphasises substitution where practicable, effective ventilation, contamination control, suitable PPE and immediate first-aid readiness. [S214]

The removal process transfers material into dust, spent abrasive, filters, sludge, pickling solution, rinsate, wipes and protective sheeting. Characterise and segregate these streams by their actual composition and generating process.

Malaysian DOE guidance governs scheduled-waste classification, compatible packaging, labelling, storage and authorised routing; industrial effluent requires the applicable treatment and discharge controls. [S199; S216]

Before release, confirm:

• the substrate, unwanted layer and required end condition were identified;
• oil, grease and hazardous previous material were addressed;
• the selected method preserved required dimensions, edges, coatings and adjacent components;
• remaining rust, scale and coating meet the specified visual condition;
• dust, soluble contamination and profile were checked where required;
• chemical residue and rinse water were removed from hidden geometry;
• the surface is dry, protected and within the permitted time window;
• waste and effluent streams are contained and routed correctly; and
• the next coating, joining, passivation, inspection or service step accepts the prepared surface.
